Inductive Sensor 15mm NPN N/O & N/C M30

Rated switching distance:  Sn 15 mm

• Mounting conditions:  Flush
• Secured operating distance:  < (0,81 x Sn) mm
• Correction factors:  St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
• Repeat accuracy ð 2 % of full scale
• Temperature drift:  < ± 10 %
• Hysteresis:  3…15 %
• Ambient temperature:  -25…+70 °C

Operating voltage:  10-30 VDC

• Residual ripple:  < 10 % Uss
• DC rated operational current:  < 200 mA
• No-load current I0:  < 15 mA
• Residual current:  < 0.1 mA
• Isolation test voltage:  < 0.5 kV
• Short-circuit protection:  yes/ Cyclic
• Voltage drop at Ie:  < 1.8 V
• Wire breakage/Reverse polarity protection:  yes/ Complete

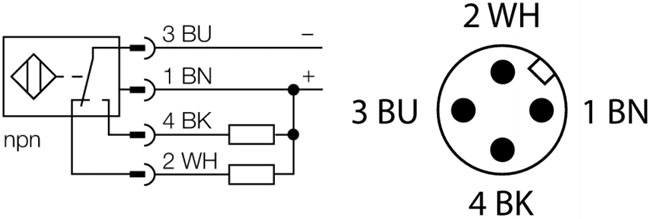

• Output function:  4-wire, Complementary contact, NPN
• Switching frequency:  0.15 kHz

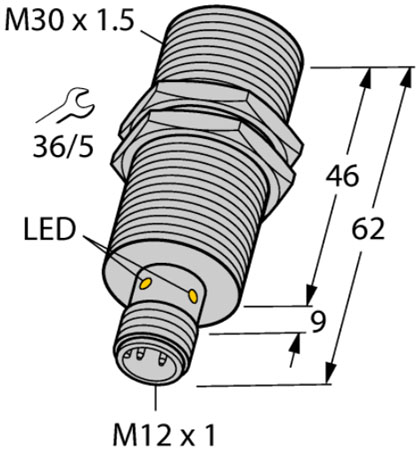

Design:  Threaded barrel,M30 × 1.5

• Dimensions:  62 mm
• Housing material:  Metal, CuZn, Chrome-plated
• Active area material:  Plastic, PA12-GF30
• Max. tightening torque housing nut:  75 Nm
• Electrical connection:  Connectors, M12 × 1
• Vibration resistance:  55 Hz (1 mm)
• Shock resistance:  30 g (11 ms)
• Protection class:  IP67
• MTTF:  2283 years acc. to SN 29500 (Ed. 99) 40 °C
• Packaging unit:  1

Switching state:  LED, Yellow
